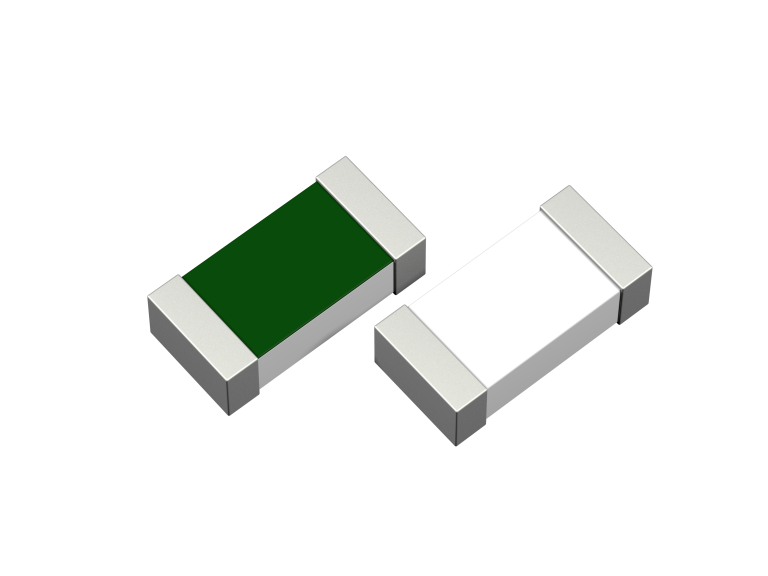

F04F Series
Description
- Thick film manufacturing method, ceramic substrate.
- Fast Acting SMD Fuses for fast over current protection.
- Excellent heat and shock tolerant.
- -55℃~125℃ operating temperature.
Features
- Power supply and battery pack
- Lamps and LED
- Power tools
- PC related equipment and peripherals (Hard driver, Printer, etc.)
- Digital camera (Digital still camera)
- Game equipment
- LCD monitor and LCD modules
- Wireless base station
Operating Characteristics
Model | 250%In | 350%In | 100 %In |
F04F0.2-0.75 | 5s Max | — | 4 hrs Min |
F04F1-4 | — | 5s Max | 4 hrs Min |
Electrical Characteristics
Part No. | Rated Voltage | Rated Current(A) | Breaking Capacity1 | Typical Cold Resistance2 (mΩ) | Typical Pre- Arcing I2t (A2Sec)3 |
F04F0.2 | 32V DC | 0.2 | 35A@32VDC | 1750 | 0.0006 |
F04F0.25 | 32V DC | 0.25 | 1500 | 0.0010 | |
F04F0.315 | 32V DC | 0.315 | 1000 | 0.0014 | |
F04F0.375 | 32V DC | 0.375 | 780 | 0.0018 | |
F04F0.5 | 32V DC | 0.5 | 500 | 0.0043 | |
F04F0.75 | 32V DC | 0.75 | 220 | 0.011 | |
F04F1 | 32V DC | 1 | 130 | 0.04 | |
F04F1.5 | 32V DC | 1.5 | 78 | 0.06 | |
F04F2 | 32V DC | 2 | 40 | 0.13 | |
F04F2.5 | 32V DC | 2.5 | 24 | 0.20 | |
F04F3 | 32V DC | 3 | 18 | 0.33 | |
F04F3.5 | 32V DC | 3.5 | 14 | 0.45 | |
F04F4 | 32V DC | 4 | 11 | 0.60 |
