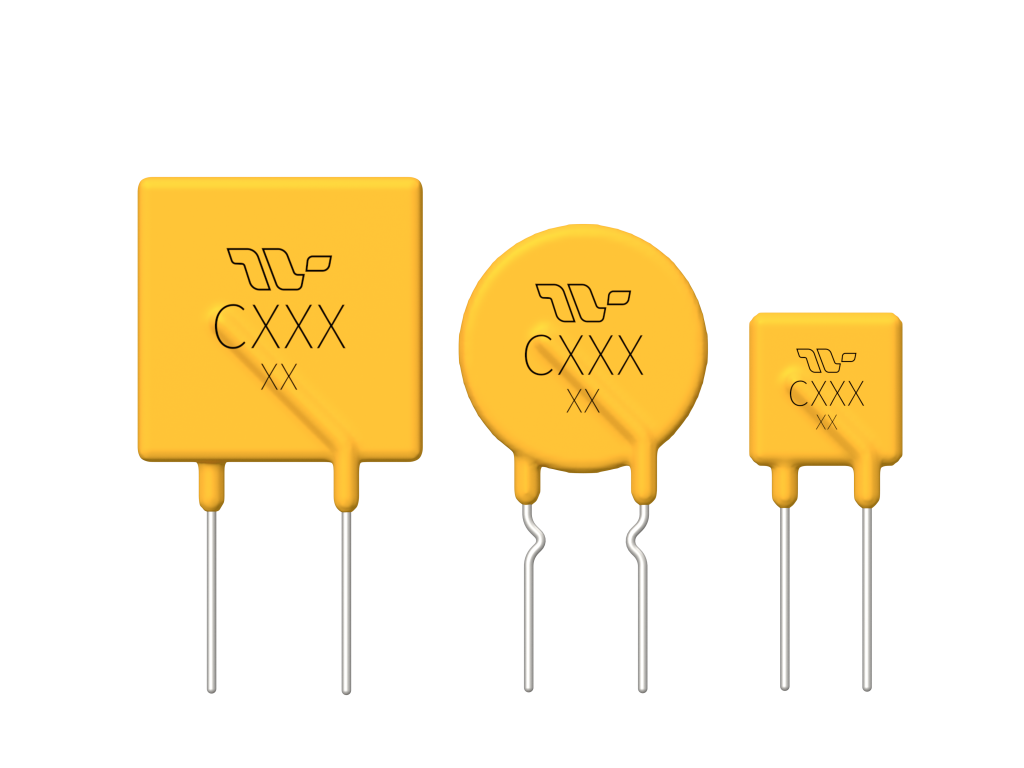

Radial Leaded TRC Series
Applications
- Over current and over temperature protection of automotive electronics
- PC motherboards, Hard disk driver, and PC peripherals
- POS Equipment
- LCD / LED HDTV
- USB port protection
- HDMI source protection
Features
- Surface Mount Devices
- Standard product footprint
- Surface Mount packaging for automated assembly
- Compatible with Pb and Pb-free solder reflow profiles
Electrical Characteristics
| P/N | 保持电流 | 跳脱电流 | 最大电压 | 最大电流 | 最大动作时间 | 消耗功率 | 电阻范围(Ω) | |||
| IH, (A) | IT, (A) | Vmax, (V) | Imax, (A) | (A) | (Sec.) | Pd typ, (W) | R min, | R max, | R1max, | |
| TRC005 | 0.05 | 0.15 | 60 | 40 | 0.25 | 5.0 | 0.22 | 7.30 | 13.0 | 25.00 |
| TRC010 | 0.10 | 0.20 | 60 | 40 | 0.50 | 4.0 | 0.38 | 2.30 | 8.10 | 12.0 |
| TRC017 | 0.17 | 0.34 | 60/72 | 40 | 0.85 | 3.0 | 0.48 | 2.00 | 5.21 | 8.00 |
| TRC020 | 0.20 | 0.40 | 60/72 | 40 | 1.00 | 2.2 | 0.40 | 1.30 | 2.84 | 4.50 |
| TRC025 | 0.25 | 0.50 | 60/72 | 40 | 1.25 | 2.5 | 0.45 | 0.90 | 1.95 | 3.00 |
| TRC030 | 0.30 | 0.60 | 60/72 | 40 | 1.50 | 3.0 | 0.50 | 0.70 | 1.36 | 2.10 |
| TRC035 | 0.35 | 0.70 | 60/72 | 40 | 1.75 | 3.0 | 0.50 | 0.48 | 0.95 | 1.40 |
| TRC040 | 0.40 | 0.80 | 60/72 | 40 | 2.00 | 3.8 | 0.55 | 0.48 | 0.95 | 1.40 |
| TRC050 | 0.50 | 1.00 | 60/72 | 40 | 2.50 | 4.0 | 0.75 | 0.38 | 0.78 | 1.20 |
| TRC060 | 0.60 | 1.20 | 60/72 | 40 | 3.00 | 5.3 | 0.90 | 0.24 | 0.54 | 0.74 |
| TRC065 | 0.65 | 1.30 | 60/72 | 40 | 3.25 | 5.3 | 0.90 | 0.24 | 0.54 | 0.74 |
| TRC075 | 0.75 | 1.50 | 60/72 | 40 | 3.75 | 6.3 | 0.90 | 0.23 | 0.45 | 0.62 |
| TRC090 | 0.90 | 1.80 | 60/72 | 40 | 4.50 | 7.2 | 1.00 | 0.14 | 0.31 | 0.49 |
| TRC110 | 1.10 | 2.20 | 60/72 | 40 | 5.50 | 8.2 | 1.50 | 0.15 | 0.25 | 0.40 |
| TRC135 | 1.35 | 2.70 | 60/72 | 40 | 6.75 | 9.6 | 1.70 | 0.12 | 0.19 | 0.32 |
| TRC160 | 1.60 | 3.20 | 60/72 | 40 | 8.00 | 11.4 | 1.90 | 0.09 | 0.14 | 0.24 |
| TRC185 | 1.85 | 3.70 | 60/72 | 40 | 9.25 | 12.6 | 2.10 | 0.08 | 0.12 | 0.21 |
| TRC210 | 2.10 | 4.20 | 60/72 | 40 | 10.50 | 12.6 | 2.10 | 0.07 | 0.12 | 0.21 |
| TRC250 | 2.50 | 5.00 | 60/72 | 40 | 12.50 | 15.6 | 2.50 | 0.05 | 0.08 | 0.15 |
| TRC300 | 3.00 | 6.00 | 60/72 | 40 | 15.00 | 19.8 | 2.80 | 0.04 | 0.06 | 0.12 |
| TRC375 | 3.75 | 7.50 | 60/72 | 40 | 18.75 | 24.0 | 3.20 | 0.03 | 0.05 | 0.10 |
| TRC500 | 5.00 | 10.0 | 60/72 | 40 | 25.00 | 24.0 | 3.20 | 0.12 | 0.05 | 0.10 |
