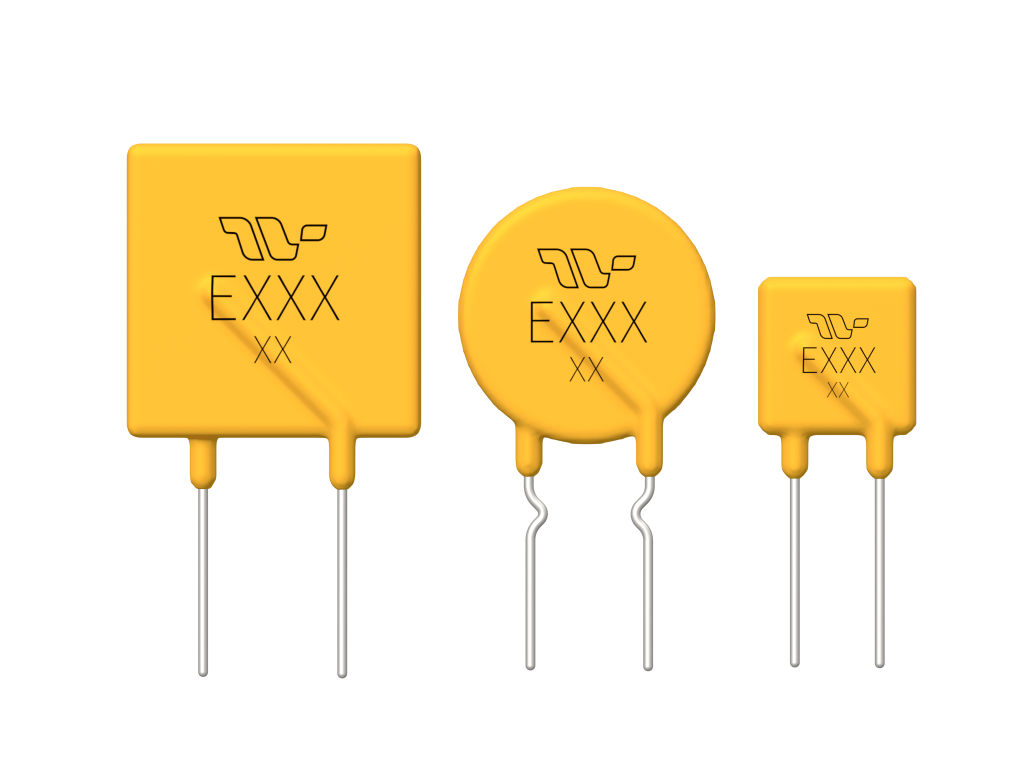

Radial Leaded TRE Series
Applications
- Over current and over temperature protection of automotive electronics
- PC motherboards, Hard disk driver, and PC peripherals
- POS Equipment
- LCD / LED HDTV
- USB port protection
- HDMI source protection
Features
- Surface Mount Devices
- Standard product footprint
- Surface Mount packaging for automated assembly
- Compatible with Pb and Pb-free solder reflow profiles
Electrical Characteristics
| P/N | 保持 电流 | 跳脱 电流 | 最大电压 | 最大 电流 | 最大冲 击电压 | 最大动作时间 | 消耗功率 | 电阻范围(Ω) | |||
| IH, (A) | IT, (A) | Vmax, Vac(dc) | Imax, (A) | Vmax, Vac(dc) | (A) | (Sec.) | Pd typ, (W) | R min | R max | R1 max | |
| TRE010 | 0.10 | 0.20 | 120 | 2.0 | 135 | 0.50 | 11.0 | 0.85 | 2.50 | 5.50 | 7.50 |
| TRE015 | 0.15 | 0.30 | 120 | 2.0 | 135 | 0.75 | 11.0 | 0.85 | 1.50 | 4.00 | 7.00 |
| TRE017 | 0.17 | 0.34 | 120 | 2.0 | 135 | 0.85 | 11.0 | 0.85 | 1.40 | 3.80 | 7.00 |
| TRE020 | 0.20 | 0.40 | 120 | 2.0 | 135 | 1.00 | 9.0 | 1.08 | 1.00 | 2.50 | 4.40 |
| TRE025 | 0.25 | 0.50 | 120 | 3.0 | 135 | 1.25 | 8.5 | 1.08 | 0.80 | 2.00 | 3.00 |
| TRE030 | 0.30 | 0.60 | 120 | 3.0 | 135 | 1.50 | 8.5 | 1.44 | 0.70 | 1.80 | 2.10 |
| TRE035 | 0.35 | 0.70 | 120 | 3.0 | 135 | 1.75 | 8.5 | 1.44 | 0.60 | 1.20 | 1.80 |
| TRE040 | 0.40 | 0.80 | 120 | 3.0 | 135 | 2.00 | 6.5 | 1.44 | 0.50 | 1.10 | 1.29 |
| TRE050 | 0.50 | 1.00 | 120 | 3.0 | 135 | 2.50 | 6.0 | 1.56 | 0.40 | 1.00 | 1.17 |
| TRE055 | 0.55 | 1.10 | 120 | 3.0 | 135 | 2.75 | 6.0 | 1.56 | 0.30 | 0.90 | 1.10 |
| TRE055U | 0.55 | 1.10 | 120 | 3.0 | 135 | 2.75 | 6.0 | 1.56 | 0.30 | 0.90 | 1.10 |
| TRE065 | 0.65 | 1.30 | 120 | 5.0 | 135 | 3.25 | 6.0 | 1.68 | 0.25 | 0.70 | 0.90 |
| TRE070 | 0.70 | 1.40 | 120 | 5.0 | 135 | 3.50 | 6.3 | 1.80 | 0.25 | 0.70 | 0.90 |
| TRE075 | 0.75 | 1.50 | 120 | 7.5 | 135 | 3.75 | 7.0 | 2.64 | 0.20 | 0.60 | 0.80 |
| TRE090 | 0.90 | 1.80 | 120 | 7.5 | 135 | 4.50 | 7.2 | 1.80 | 0.18 | 0.40 | 0.70 |
| TRE100 | 1.00 | 2.00 | 120 | 10.0 | 135 | 5.00 | 15.0 | 2.64 | 0.16 | 0.38 | 0.60 |
| TRE110 | 1.10 | 2.20 | 120 | 10.0 | 135 | 5.50 | 15.0 | 2.28 | 0.15 | 0.38 | 0.58 |
| TRE125 | 1.25 | 2.50 | 120 | 10.0 | 135 | 6.25 | 20.0 | 2.88 | 0.11 | 0.30 | 0.35 |
| TRE130 | 1.30 | 2.60 | 120 | 10.0 | 135 | 6.50 | 20.0 | 2.64 | 0.11 | 0.30 | 0.35 |
| TRE135 | 1.35 | 2.70 | 120 | 10.0 | 135 | 6.75 | 20.0 | 3.12 | 0.11 | 0.30 | 0.35 |
| TRE160 | 1.60 | 3.20 | 120 | 12.0 | 135 | 8.00 | 16.4 | 3.12 | 0.09 | 0.20 | 0.22 |
| TRE185 | 1.85 | 3.70 | 120 | 12.0 | 135 | 9.25 | 12.6 | 3.36 | 0.08 | 0.17 | 0.21 |
| TRE200 | 2.00 | 4.00 | 120 | 15.0 | 135 | 10.00 | 36.0 | 4.32 | 0.08 | 0.16 | 0.21 |
| TRE250 | 2.50 | 5.00 | 120 | 15.0 | 135 | 12.50 | 15.6 | 4.44 | 0.05 | 0.13 | 0.17 |
| TRE300 | 3.00 | 6.00 | 120 | 17.0 | 135 | 15.00 | 19.8 | 4.56 | 0.04 | 0.10 | 0.15 |
| TRE375 | 3.75 | 7.50 | 120 | 25.0 | 135 | 18.75 | 24.0 | 4.80 | 0.03 | 0.08 | 0.12 |
| TRE500 | 5.00 | 10.0 | 120 | 27.5 | 135 | 25.00 | 24.0 | 4.80 | 0.02 | 0.06 | 0.07 |
