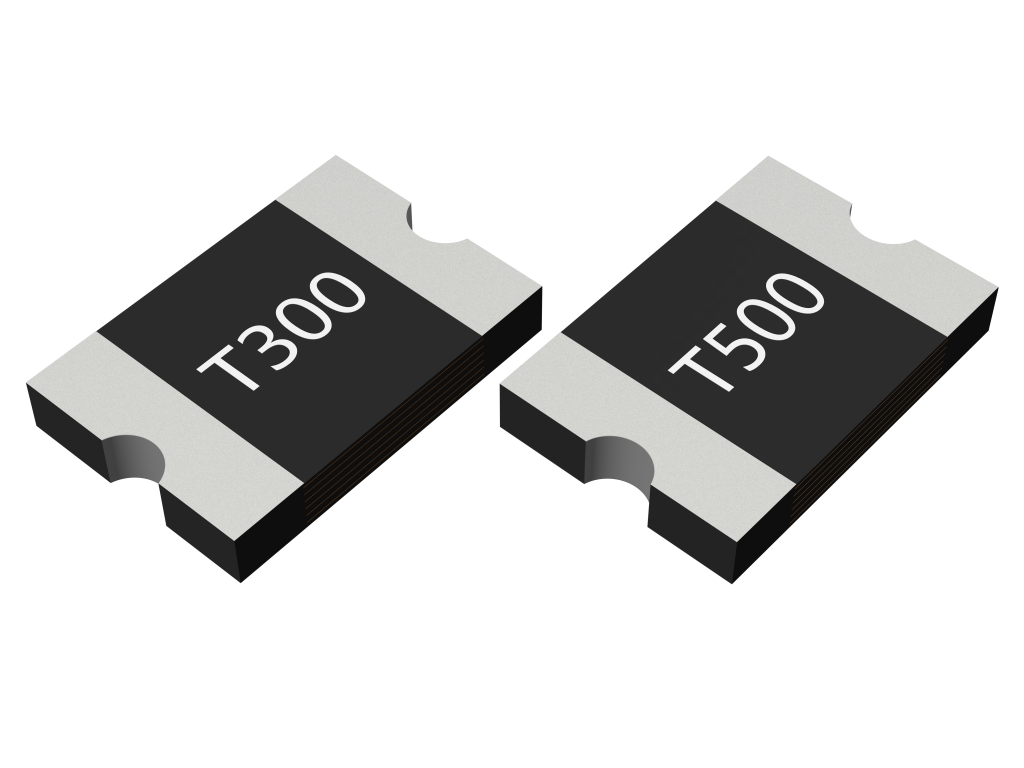

SMD Surface Mount 2920 Series

Applications

  • Over current and over temperature protection of automotive electronics
  • PC motherboards, Hard disk driver, and PC peripherals
  • POS Equipment
  • LCD / LED HDTV
  • USB port protection
  • HDMI source protection

Features

  • Surface Mount Devices
  • Standard product footprint
  • Surface Mount packaging for automated assembly
  • Compatible with Pb and Pb-free solder reflow profiles

Electrical Characteristics

  P/N Ihold (A) Itrip (A) Vmax, (V) Imax (A) Time To Trip Pd typ (W) Resistance Agency Approvals
Current (A) Time (Sec.) Rmin (Ω) R1max (Ω) UL/CSA TUV
TLC-LSMD030 0.30 0.60 60 10 1.50 3.0 1.50 0.600 4.300 × √
TLC-LSMD030/50 0.30 0.60 50 10 1.50 3.0 1.50 0.600 4.300 × √
TLC-LSMD050 0.50 1.00 60 10 2.50 3.0 1.50 0.180 1.400 √ √
TLC-LSMD050/50 0.50 1.00 50 10 2.50 3.0 1.50 0.180 1.400 × √
TLC-LSMD075 0.75 1.50 33 40 8.00 0.30 1.50 0.100 1.000 × √
TLC-LSMD075/60 0.75 1.50 60 40 8.00 0.30 1.50 0.100 1.000 × √
TLC-LSMD100 1.00 2.00 33 40 8.00 0.50 1.50 0.065 0.410 × √
TLC-LSMD100/60 1.00 2.00 60 100 8.00 0.50 1.50 0.090 0.410 × √
TLC-LSMD110 1.10 2.20 33 40 8.00 0.50 1.50 0.065 0.410 × ×
TLC-LSMD125 1.25 2.50 33 40 8.00 2.0 1.50 0.050 0.250 × √
TLC-LSMD150 1.50 3.00 33 40 8.00 2.0 1.50 0.035 0.230 √ √
TLC-LSMD185 1.85 3.70 33 100 8.00 2.0 1.50 0.030 0.150 √ √
TLC-LSMD200 2.00 4.00 16 40 8.00 4.50 1.50 0.020 0.120 × √
TLC-LSMD200/24 2.00 4.00 24 40 8.00 4.50 1.50 0.020 0.120 √ √
TLC-LSMD200/33 2.00 4.00 33 40 8.00 4.50 1.50 0.020 0.125 × √
TLC-LSMD250 2.50 5.00 16 40 8.00 16.0 1.50 0.018 0.085 × √
TLC-LSMD260 2.60 5.20 16 40 8.00 20.0 1.50 0.014 0.075 × √
TLC-LSMD260D 2.60 5.20 24 100 8.00 18.0 1.50 0.014 0.075 √ √
TLC-LSMD260/33 2.60 5.20 33 40 8.00 20.0 1.50 0.014 0.080 × ×
TLC-LSMD300 3.00 6.00 12 40 8.00 25.0 1.50 0.010 0.055 × √
TLC-LSMD300D/16 3.00 6.00 16 40 8.00 25.0 1.50 0.010 0.055 × √
TLC-LSMD300D 3.00 6.00 24 100 8.00 20.0 1.50 0.010 0.055 √ √
TLC-LSMD300/30 3.00 6.00 30 40 8.00 25.0 1.50 0.010 0.055 × √
TLC-LSMD300/33 3.00 6.00 33 40 8.00 25.0 1.50 0.010 0.055 × ×
TLC-LSMD400 4.00 8.00 16 40 20.0 5.00 1.50 0.007 0.035 × √
TLC-LSMD450 4.50 9.00 16 40 22.5 5.00 1.50 0.005 0.020 × √
TLC-LSMD500 5.00 10.00 16 40 25.0 5.00 1.50 0.005 0.022 √ √
TLC-LSMD500/8 5.00 10.00 8 40 25.0 5.00 1.50 0.005 0.018 × √
TLC-LSMD600 6.00 12.00 16 40 30.0 5.00 1.50 0.003 0.020 × √
TLC-LSMD700 7.00 14.00 16 40 35.0 5.00 1.50 0.003 0.020 × √
